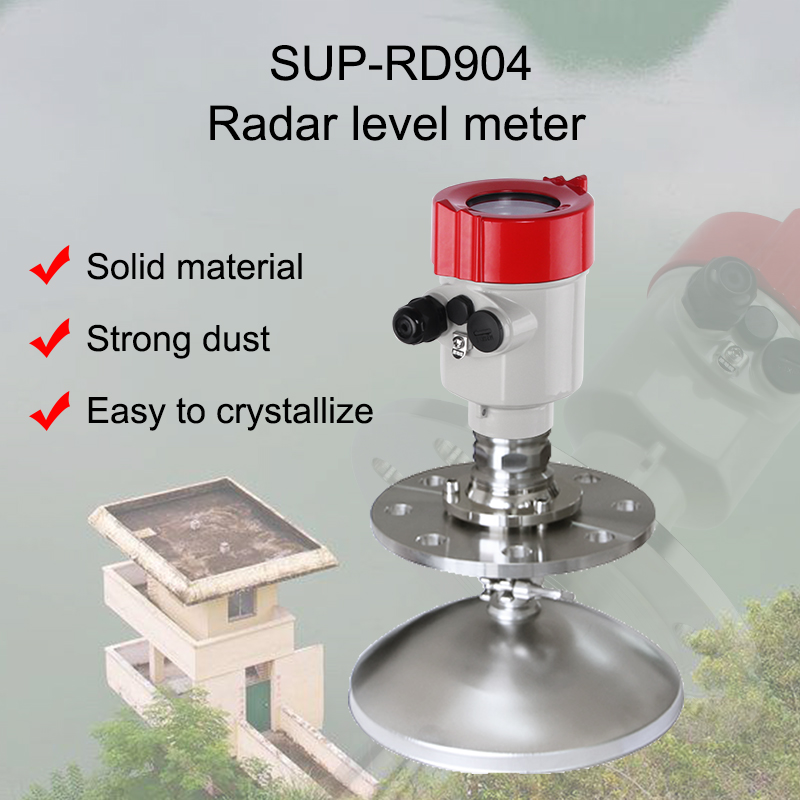

RD904 Высокочастотный радарный уровнемер для твердых материалов, лучший выбор для измерения твердой и низкой диэлектрической проницаемости.
| Product | Radar level meter |
| Model | SUP-RD904 |
| Measure range | 0-80 meters |
| Application | Solid material, Strong dust, easy to crystallize, condensation occasion |
| Process Connection | Thread, Flange |
| Medium Temperature | -40℃~250℃ |
| Process Pressure | -0.1 ~ 0.3MPa |
| Accuracy | ±15mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4-20mA (Two-wire/Four) |
| RS485/Modbus | |
| Power supply | DC(6~24V)/ Four-wire DC 24V / Two-wire |
SUP-RD904 Радарный уровнемер использует рекомендуемую в отрасли частоту излучения 26G Гц. Диапазон измерения до 80 метров, охватывающий измерение уровня воды в большом резервуаре.
 |
 |
 |
| Be installed in the diameter of the 1/4 or 1/6.
Note: The minimum distance from the tank wall should be 200mm. Note: ① datum ②The container center or axis of symmetry |
The top conical tank level, can be installed at
the top of the tank is intermediate, can guarantee the measurement to the conical bottom |
A feed antenna to the vertical alignment surface.
If the surface is rough, stack angle must be used to adjust the angle of cardan flange of the antenna to the alignment surface. (Due to the solid surface tilt will cause the echo attenuation, even Loss of signal.) |
